Water Purification Equipment for Fresh Water
AQUATTY ryo [涼]

You can choice AC or DC power unit. Motor drive system provides to you the ultra-low-noise. AQUATTY 涼 can make the mineral water to purify the water(optional part) of the following. river water/lakes/swamps/ponds/swimming pool/rain water...... We can provide you also another sea water purification machine.

Runs on Solar panels

太陽さえあれば、世界のどこでも海水を飲料水に変えることができます。

Purifies 2,400Liter/day

1日で2,400リットル（634ガロン）の飲料水を生成することができます。

Compact and Light weight

屋外のレジャーや船舶での生活など、場所を選ばすに活用することができます。

Simple and Robust Design

見栄え重視でなく、実利優先で安価に設計しています。

Freshwater version available

陸上にある池、河川、貯水施設などの汚れた淡水にも使用することができます。

Japan Pride

フィルターを含む基幹部品は、全て日本製で日本で組み立てています。

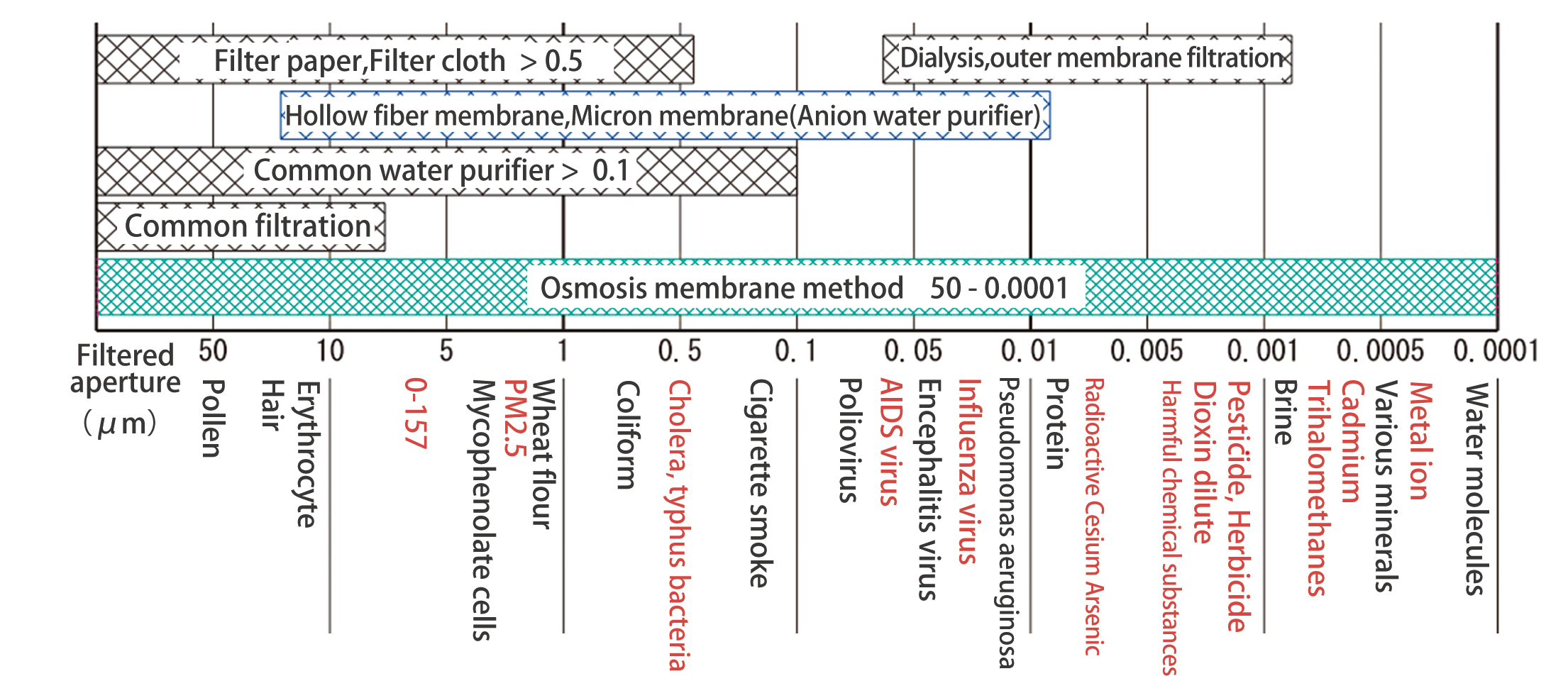

Filter Range Chart


逆浸透膜方式は、ほとんどの有害物質を取り除きます。

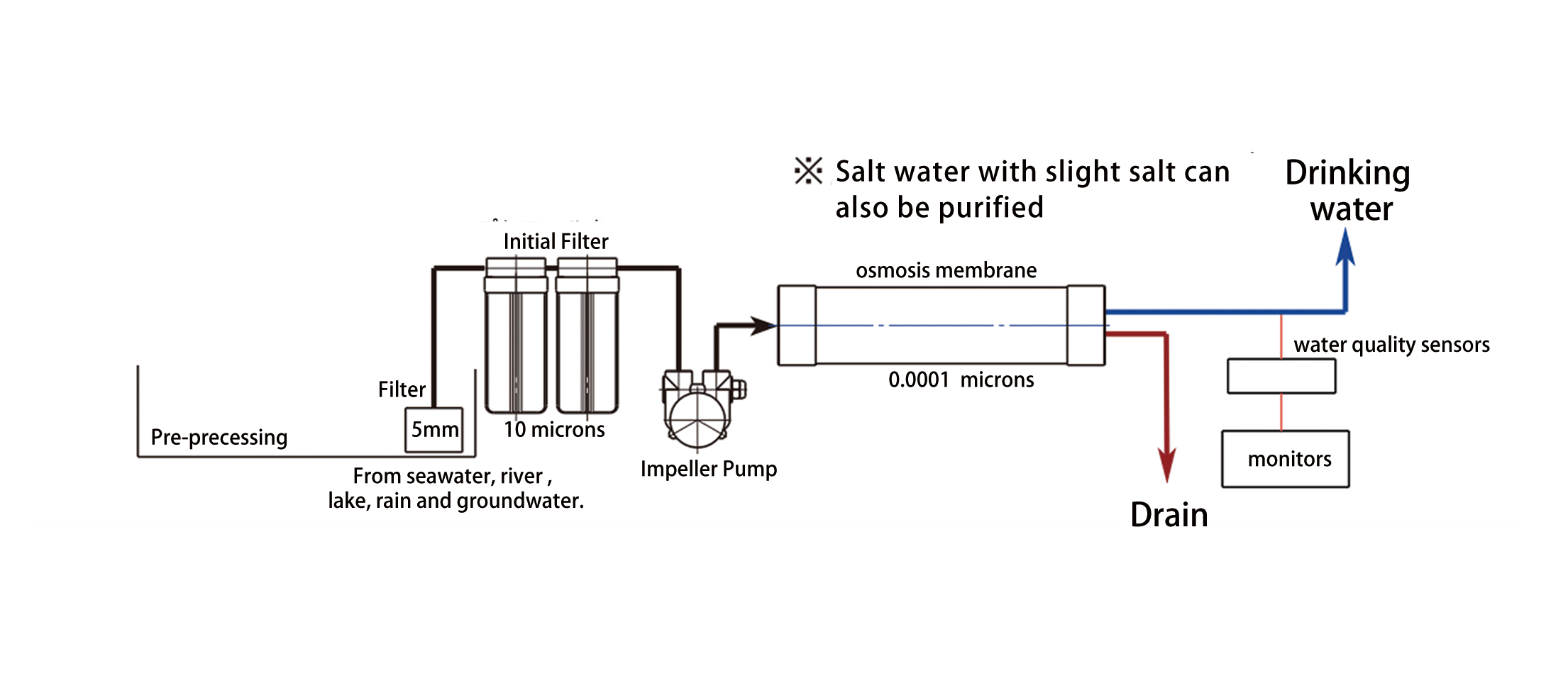

System Flow Chart


System Flow Chart

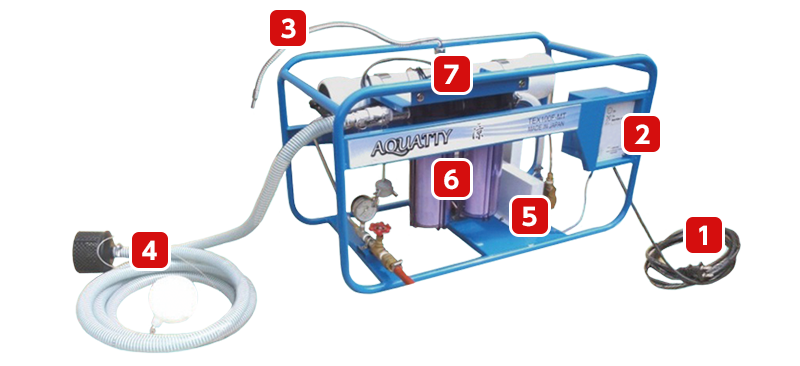

Each Function


AC power supply code

AC100V-AC220V, DC24-V

An intellgible operation panel

Information on a water purifiing machine. When you did not use this 2 or 3 days, it makes the internal purification operation of about 30 minutes.

The faucet in which a desorption enclosure is prossible

can desorb easily a faucet is removed and is kept cleanly.

Water absorption

Power is not needed for desorption of a water absorption hose.

Motor

AC100-220V Hitachi motor DC24V Tokushu Denso motor.

Pre filter

Large garbage is removed here.

Exchages easily

Exchage of a reverse osmosis membrane is simply from on way.

SPECIFICATION

MODEL
AQUATTY 涼　TEX100F
Specification
MT1050
MT1060
Voltage
AC100V〜110V
Cycle
50Hz
60Hz
Raw Water（※1）
river,lakes and marshes,saved water,rain,pool
Scope of Temperature
4℃〜43℃（39°F〜109°F）
Amount of Water Producted（※2）
100L/Hr（2400L/day）
0.1t/Hr(2.4t/Hr)
Water Purification
primary strainer（5mm）
prefilter（10µm）
osmosis membrane（0.0001µm）
Standard Fiction
temparature compensation water quality senor
LED indicationg monitor
Pump
vane pump
Drive Unit
AC100V/400W Motor
Paint
Flour paint
No oraganic. No air pollution. No dirty water.
Hight film thickness. High persistance
size
all length 880mm × width 430mm × height 480mm
Weight
Net:43.7kg（AC） / 41.7kg（DC）
Gross:48.7kg（AC） / 46.7kg（DC）
Accessories
strainer attached water suction pipe（5m）
drain hose（3m）
water tap（0.8m）
float
standby prefilter（2pcs）
wrench
Option
mineral filter(factory option)
hollow silk film filter
carbon filter
MODEL
AQUATTY 涼　TEX100F
Specification
MT2050
MT2060
Voltage
AC200V〜220V
Cycle
50Hz
60Hz
Raw Water（※1）
river,lakes and marshes,saved water,rain,pool
Scope of Temperature
4℃〜43℃（39°F〜109°F）
Amount of Water Producted（※2）
100L/Hr（2400L/day）
0.1t/Hr(2.4t/Hr)
Water Purification
primary strainer（5mm）
prefilter（10µm）
osmosis membrane（0.0001µm）
Standard Fiction
temparature compensation water quality senor
LED indicationg monitor
Pump
vane pump
Drive Unit
AC200V/400W Motor
Paint
Flour paint
No oraganic. No air pollution. No dirty water.
Hight film thickness. High persistance
size
all length 880mm × width 430mm × height 480mm
Weight
Net:43.7kg（AC） / 41.7kg（DC）
Gross:48.7kg（AC） / 46.7kg（DC）
Accessories
strainer attached water suction pipe（5m）
drain hose（3m）
water tap（0.8m）
float
standby prefilter（2pcs）
wrench
Option
mineral filter(factory option)
hollow silk film filter
carbon filter
MODEL
AQUATTY 涼　TEX100F
Specification
HB
Voltage
DC24V
Cycle
DC
Raw Water（※1）
river,lakes and marshes,saved water,rain,pool
Scope of Temperature
4℃〜43℃（39°F〜109°F）
Amount of Water Producted（※2）
100L/Hr（2400L/day）
0.1t/Hr(2.4t/Hr)
Water Purification
primary strainer（5mm）
prefilter（10µm）
osmosis membrane（0.0001µm）
Standard Fiction
temparature compensation water quality senor
LED indicationg monitor
Pump
vane pump
Drive Unit
DC24VV/450W Motor
Paint
Flour paint
No oraganic. No air pollution. No dirty water.
Hight film thickness. High persistance
size
all length 880mm × width 430mm × height 480mm
Weight
Net:43.7kg（AC） / 41.7kg（DC）
Gross:48.7kg（AC） / 46.7kg（DC）
Accessories
strainer attached water suction pipe（5m）
drain hose（3m）
water tap（0.8m）
float
standby prefilter（2pcs）
wrench
Option
mineral filter(factory option)
hollow silk film filter
carbon filter
  • ※１：Please do not use the water including the filthy or oil.
  • ※２：It changes along water temperature, operation pressure and the state of source water.
    The specifications mentioned above are exanimated in water temperature 25 degress and pressure 5.5MPa.
  • ※３：The specifications of the productmay be changed for improvement without notice.

Product Series of Water Purification Devices


Water Purifier For Sea Water
model TEX50S-MT

TEX50S-MT, with installing three RO filters, designated for sea water purification is available. This specific system can also be operated by solar panel.

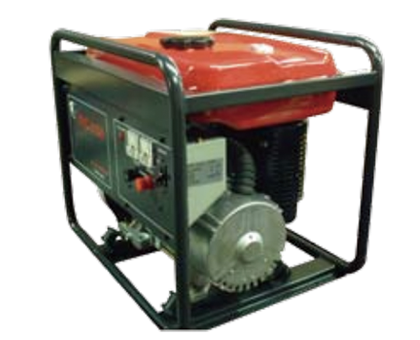

SUBARU RGX3600 Generator

In case of lack of electricity supply (either solar panel or commercial power supply), engine - generator may be provide (optional). Single-phase power generation of 100V or 200V is available. Both gasoline type & diesel type are available. Please contact for further details.
